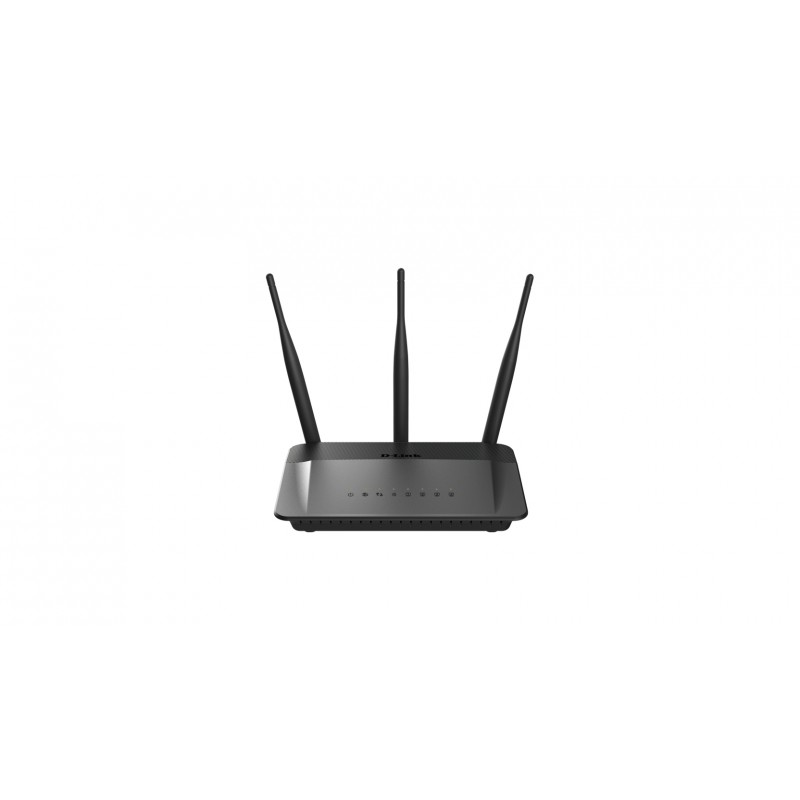

D-Link DIR-809
  • D-Link DIR-809
  • D-Link DIR-809
  • D-Link DIR-809
  • D-Link DIR-809
  • D-Link DIR-809
The increased range and reliability of wireless AC technology reaches further into your home, and the DIR-809's advanced security features keep your network and data safe from intruders.



High-Speed Wireless Connectivity

The DIR-809 Wireless AC750 Dual Band Router uses the latest high-speed wireless technology to bring you lightning-fast Wi-Fi speeds of up to 433 Mbps on the 5 GHz frequency band and 300 Mbps on the 2.4 GHz frequency band.



Dual Band Wireless for Seamless Performance

Surf the web, chat and play online games on the 2.4 GHz band with your smartphones and computers, while simultaneously streaming digital media on the 5 GHz band on your streaming media players and tablets.



Extend Your Existing Wireless Network

You can also use the Wireless AC750 Dual Band Router to increase the coverage of your existing home Wi-Fi network.



Easy to Set Up, Easy to Secure

Just open a web browser to access the setup wizard and follow the easy step-by-step instructions to get started. You can also use the QRS (Quick Router Setup) Mobile app, available for iOS and Android smartphones and tablets.
3GN
4GN
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Antenna typeExternal
Antennas quantity3
CertificationANATEL, NCC, CCC, BSMI
Depth133 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100 Mbit/s
FilteringY
FirewallY
Firmware upgradeableY
Height83 mm
LED indicatorsLAN,Power,WLAN,WPS
Linux operating systems supportedY
MAC address filteringY
Mac operating systems supportedY
Network address translation (NAT)Y
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3u
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth344 mm
Package height74 mm
Package weight806.1 g
Package width242 mm
Port forwardingY
Power source typeAC
Product typeTabletop router
Quality of Service (QoS) supportY
Reset buttonY
Security algorithmsWPA,WPA2,WPS
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-20 - 65 °C
Universal Plug and Play (UPnP)Y
URL filteringY
USB portN
Weight228.6 g
Wi-Fi standards802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Width190 mm
Windows operating systems supportedY
WPS push buttonY
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)433 Mbit/s
Web-based setup wizardY
Stateful Packet Inspection (SPI)Y
Shipping (inner) case net weight4490 g
Quantity per shipping (inner) case10 pc(s)
Shipping (inner) case gross weight8974 g
Pallet gross weight (air)233876 g
Number of cartons per pallet (air)24
Quantity per pallet (air)240 pc(s)
Pallet height (air)1787 mm
Pallet gross weight (sea)233876 g
Number of cartons per pallet (sea)24
Quantity per pallet (sea)240 pc(s)
Pallet height (sea)1787 mm

dir-809b.pdf

D-Link DIR-809 Data Sheet

Download (331.59k)

D-Link DIR-809

802.11a/b/g/n/ac, 2.4GHz/5GHz, 4xRJ45, Fast Ethernet, 228.6g

DIR-809/B

Stock Due 02-09-2023

£33.29
£27.74 Ex VAT.
