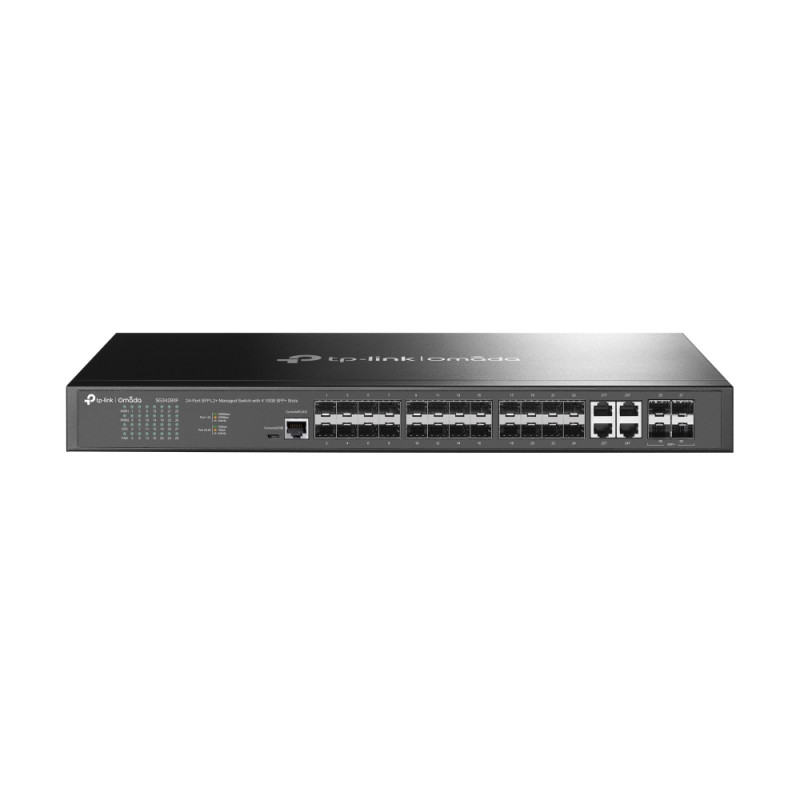

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support Yes
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports type N
Broadcast storm control Y
Cables included AC
Combo SFP ports quantity 4
Console port RJ-45/micro-USB
Depth 220 mm
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Fiber optic connector SFP,SFP+
Fiber ports quantity 20
Flow control support Y
Form factor 1U
Forwarding rate 95.23 Mpps
Head-of-line (HOL) blocking Y
Heat dissipation 121.81 BTU/h
Height 44 mm
IGMP snooping Y
IP routing Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address filtering Y
MAC address table 16000 entries
Management protocols SNMPv1/v2c/v3, SNTP
Manual Y
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Multicast support Y
Networking standards IEEE 802.11d,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of fans 1 fan(s)
Number of power supply units 2
Number of static routes 48
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 45 °C
Packet buffer memory 12 MB
Password protection Y
Port mirroring Y
Power consumption (max) 35.7 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Y
Quality of Service (QoS) support Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Redundant power supply (RPS) support Y
Routing entries 512
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch layer L2+
Switch type Managed
Switching capacity 128 Gbit/s
System event log Y
VLAN support Y
Web-based management Y
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
Cloud-managed Y
IGMP proxy Y
IPv4 routes 48
IPv6 routes 48

Specific References

EAN13
4897098688212

Download

sg3428xf.pdf

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (13.02MB)

TP-Link Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

20x Gigabit SFP, 4x Gigabit SFP/RJ45 Combo, 4x 10G SFP+ Slots, 1x RJ45, 1x Micro-USB, 128 Gbps, 16 K MAC, 440 × 220 × 44 mm
Out of Stock
£498.12
Tax included
Reference: sg3428xf
Quantity
