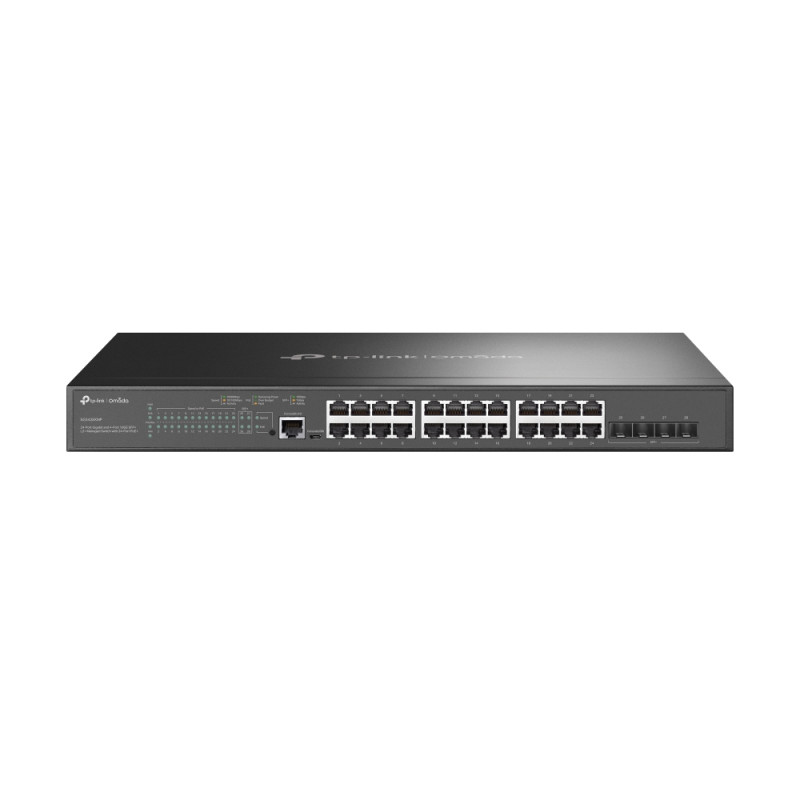

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
  • TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
  • TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Cables included LAN (RJ-45)
Console port RJ-45/micro-USB
Depth 330 mm
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Y
Form factor 1U
Forwarding rate 95.23 Mpps
Gigabit Ethernet (copper) ports quantity 24
Head-of-line (HOL) blocking Y
Heat dissipation 1658.78 BTU/h
Height 44 mm
IGMP snooping Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 16000 entries
Management protocols SNMPv1/v2c/v3, SNTP
MIB support Yes
Multicast support Y
Networking standards IEEE 802.11d,IEEE 802.1s,IEEE 802.1w
Number of fans 2 fan(s)
Number of static routes 48
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 45 °C
Packet buffer memory 12 MB
Port mirroring Y
Power consumption (max) 486.2 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 24
Power source AC
Power supply included Y
Quality of Service (QoS) support Y
Quick start guide Y
Rack mounting Yes
Rate limiting Y
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2+
Switch type Managed
Switching capacity 128 Gbit/s
System event log Y
Total Power over Ethernet (PoE) budget 384 W
VLAN support Y
Web-based management Y
Width 440 mm
Jumbo frames 9000
IP-MAC-Port binding Y
Cloud-managed Y

Specific References

EAN13
6935364030773

Download

sg3428xmp.pdf

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ Data Sheet

Download (13.02MB)

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

24× 10/100/1000 Mbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 128 Gbps, 16 K MAC, 9 KB Jumbo, 440×330×44 mm
Out of Stock
£484.89
Tax included
Reference: sg3428xmp
Quantity
