The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
Technical Headlines
- Wired
- 1000 Mbit/s 10000 m
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode, Single-mode Fiber ports quantity: 1 SFP
- Black
The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Connectivity technology | Wired |
| Depth | 73 mm |
| Duplex system | Full, Half |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber mode structure | Multi-mode, Single-mode |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Height | 27 mm |
| Internal | No |
| LED indicators | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (max) | 1.7 W |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Width | 94 mm |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
Specific References
- EAN13
- 6935364030476

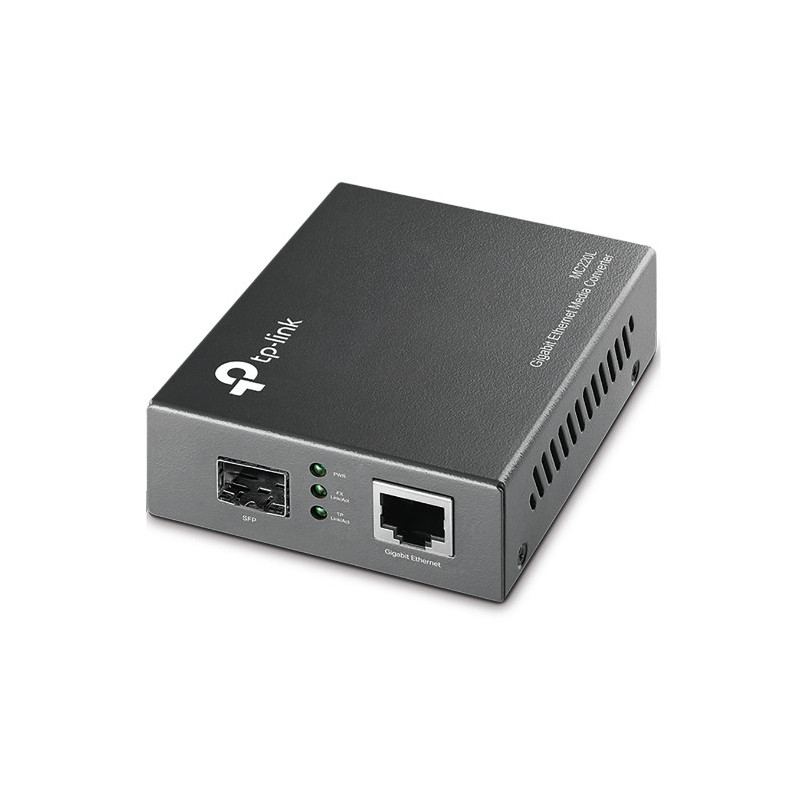

TP-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black
TP-Link MC220L, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e, Cat6
£22.03
£18.36 Ex. VAT
TP-Link MC220L, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5, Cat5e, Cat6
