Cisco® Aironet® 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.
The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.
Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.
Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
| Antenna gain level (max) | 5 dBi |
| Antenna type | internal |
| Antennas quantity | 2 |
| Certification | UL60950\nCAN/CSA-C22.2 No. 60950\nIEC 60950\nEN 60950\nEN61000-4-5\nEN61000-4-4\nEN61000-4-3\nEN61000-4-2\nFCC\nRSS-210\nRSS-102\nAS/NZS 4268.2003\nARIB-STD 66 (Japan) \nARIB-STD T71 (Japan) \nEN 300 328\nEN 301 893\nICES-003 \nEN 301 489-1, -17 |
| Channel bandwidth | 80 MHz |
| Channels quantity | 25 channels |
| Depth | 150 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472, 5.26 - 5.32, 5.66 - 5.7, 5.745 - 5.825 GHz |
| Height | 61 mm |
| International Protection (IP) code | IP67 |
| LED indicators | Y |
| MAC address filtering | Y |
| Maximum data transfer rate | 1100 Mbit/s |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
| Number of products included | 1 pc(s) |
| Number of users | 400 user(s) |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 65 °C |
| Placement | Pole,Wall |
| Polarization | Vertical polarization |
| Power consumption (max) | 13.9 W |
| Power over Ethernet (PoE) | Yes |
| Reset button | Y |
| Security algorithms | AES,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,IPSec,LEAP,WPA,WPA2 |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Transmitting power | 27 dBmW |
| WAN connection | Ethernet (RJ-45) |
| Weight | 1250 g |
| Width | 200 mm |
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Antenna direction type | omni-directional |
| Antenna features | Integrated antenna |

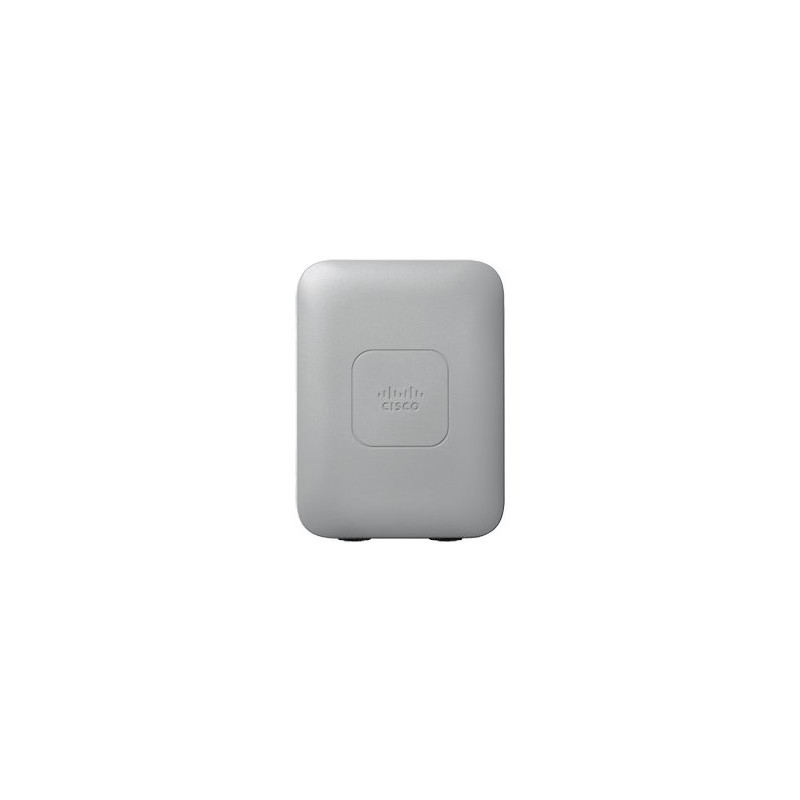

Cisco Aironet 1542I
Dual-band 802.11a/g/n/ac, Wave 2, internal omni antennas, R regulatory domain
£919.01
Tax included
Dual-band 802.11a/g/n/ac, Wave 2, internal omni antennas, R regulatory domain
