TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| 10G support | No |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 126 mm |
| Flow control support | Y |
| Forwarding rate | 11.9 mpps |
| Heat dissipation | 21.84 BTU/h |
| Height | 26 mm |
| IGMP snooping | Y |
| Input current | 1 A |
| Input voltage | 12 V |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 8000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Multicast support | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Number of IP interfaces | 16 |
| Number of static routes | 32 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 4.1 MB |
| Port mirroring | Y |
| Power consumption (max) | 6.4 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Rate limiting | Y |
| Security algorithms | SSH,SSH-2,SSL/TLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 16 Gbit/s |
| System event log | Y |
| User guide | Y |
| VLAN support | Y |
| Wall mountable | Y |
| Web-based management | Y |
| Width | 209 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| IP-MAC-Port binding | Y |
| Fanless | Y |
| Cloud-managed | Y |

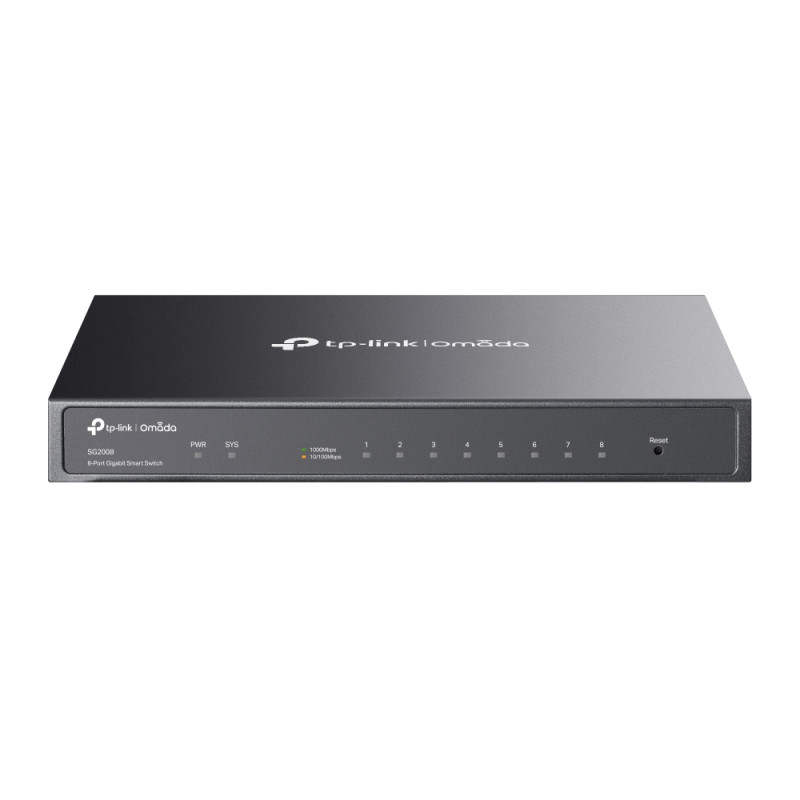

TP-Link Omada 8-Port Gigabit Smart Switch
8× 10/100/1000 Mbps RJ45, 16 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm
£70.04
Tax included
8× 10/100/1000 Mbps RJ45, 16 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm
