TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | CE, FCC, RoHS |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 180 mm |
| Fiber ethernet cabling technology | 100BASE-FX,1000BASE-X |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 14.9 Mpps |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Heat dissipation | 594.46 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Jumbo frames support | Y |
| Link aggregation | Y |
| MAC address table | 8000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493 |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of fans | 1 fan(s) |
| Number of queues | 8 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 4.1 MB |
| Port mirroring | Y |
| Power consumption (max) | 173.9 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power source | AC |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Security algorithms | EAP-LEAP,EAP-MD5,EAP-TLS,EAP-TTLS,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| System event log | Y |
| Total Power over Ethernet (PoE) budget | 150 W |
| VLAN support | Y |
| Web-based management | Y |
| Width | 294 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| IP-MAC-Port binding | Y |
| Cloud-managed | Y |
Specific References
- EAN13
- 6935364030674

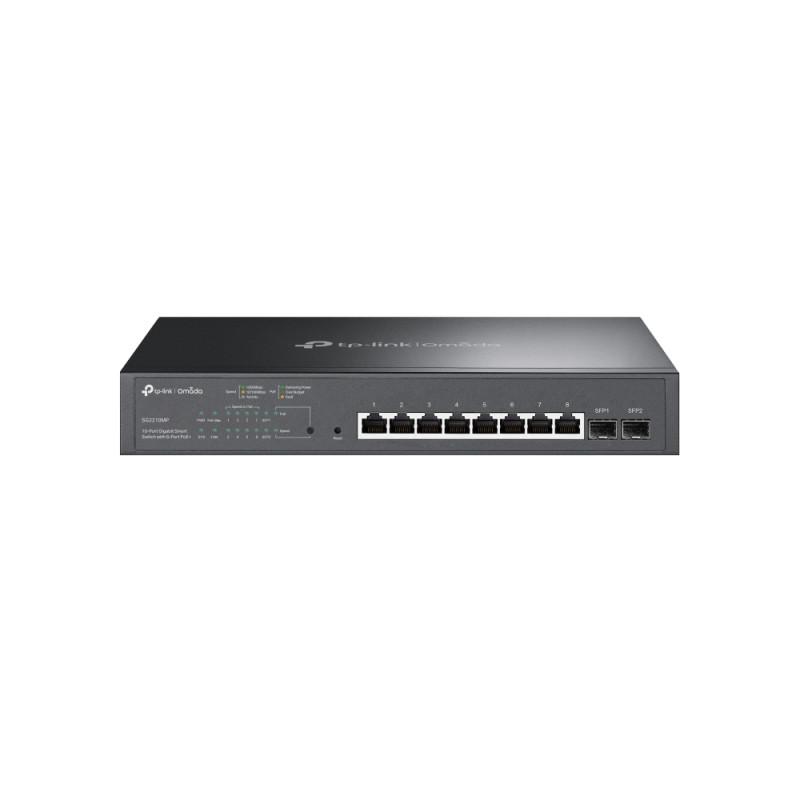

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
8× 10/100/1000 Mbps RJ45 PoE+, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 294×180×44 mm
£198.98
Tax included
8× 10/100/1000 Mbps RJ45 PoE+, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 294×180×44 mm
