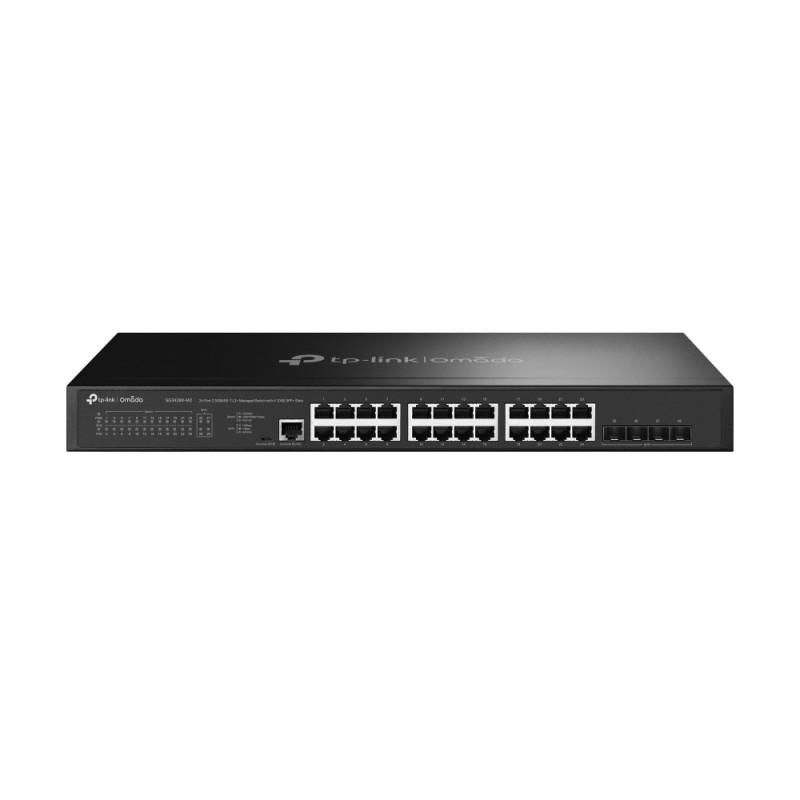

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
  • TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Broadcast storm control Y
Cables included LAN (RJ-45)
Certification CE, FCC, RoHS
Console port RJ-45/micro-USB
Depth 180 mm
Flow control support Y
Form factor 1U
Forwarding rate 148.8 Mpps
Head-of-line (HOL) blocking Y
Heat dissipation 154.38 BTU/h
Height 44 mm
IGMP snooping Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 32000 entries
Management protocols SNMP v1/v2c/v3, SNTP
MIB support Yes
Multicast support Y
Networking standards IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3bz,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
Number of fans 1 fan(s)
Number of static routes 48
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 16 MB
Port mirroring Y
Power consumption (max) 45.1 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Y
Quality of Service (QoS) support Y
Quick start guide Y
Rack mounting Yes
Rate limiting Y
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch layer L2+
Switch type Managed
Switching capacity 200 Gbit/s
System event log Y
VLAN support Y
Web-based management Y
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
Cloud-managed Y
IPv4 routes 48
IPv6 routes 48
IPv4 FIB entries 100
IPv6 FIB entries 100
2.5G Ethernet (copper) ports quantity 24
Compliance certificates CE,Federal Communications Commission (FCC),RoHS

Specific References

EAN13
4897098689745

Download

sg3428x-m2.pdf

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots Data Sheet

Download (13.02MB)

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots

24× 10/100/1000Mbps/2.5Gbps RJ45, 4× 10G SFP+ Slots, Micro-USB/RJ45, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×180×44 mm
Out of Stock
£352.66
Tax included
Reference: sg3428x-m2
Quantity
