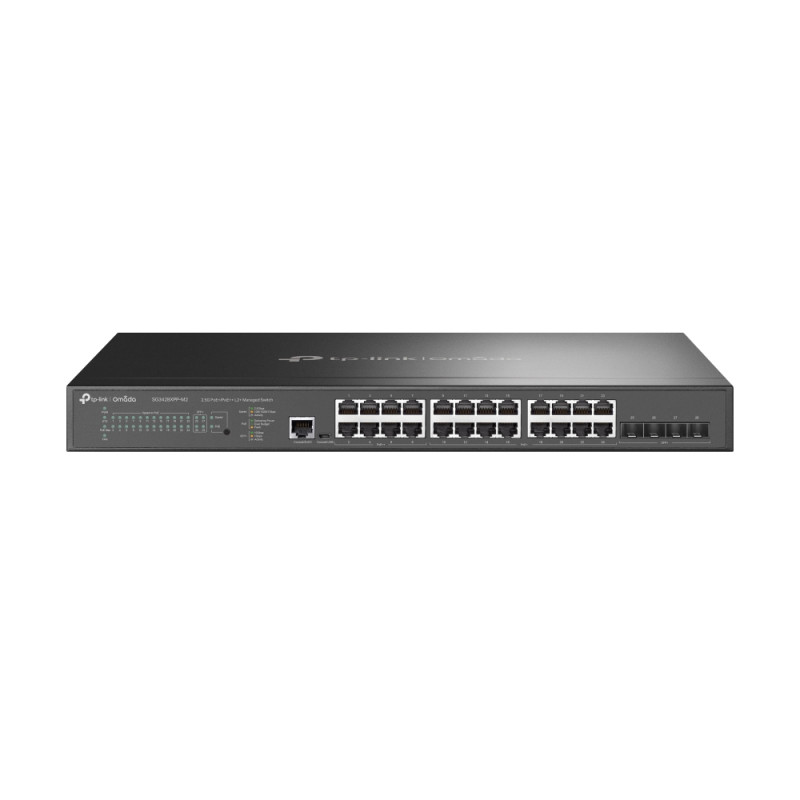

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
  • TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
  • TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Broadcast storm control Y
Cables included AC
Console port RJ-45/micro-USB
Depth 330 mm
Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s
Flash memory 32 MB
Flow control support Y
Form factor 1U
Forwarding rate 148.8 Mpps
Full duplex Y
Head-of-line (HOL) blocking Y
Heat dissipation 2153.45 BTU/h
Height 44 mm
IGMP snooping Y
Internal memory 256 MB
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 32000 entries
Management protocols SNMP v1/v2c/v3
Memory type DRAM
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of fans 3 fan(s)
Number of IP interfaces 32
Number of queues 8
Number of static routes 48
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 16 MB
Password protection Y
Port mirroring Y
Power consumption (max) 629.1 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 16
Power source AC/PoE
Power supply included Y
Quality of Service (QoS) support Y
Quick start guide Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Redundant fans support Y
Redundant power supply (RPS) support Y
Security algorithms HTTPS,SSH,SSH-2,SSL/TLS
Spanning tree protocol Y
SSH/SSL support Y
Static port security Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch layer L2+
Switch type Managed
Switching capacity 200 Gbit/s
System event log Y
Total Power over Ethernet (PoE) budget 500 W
VLAN support Y
Web-based management Y
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
Half duplex Y
Cloud-managed Y
Sustainability compliance Y
IPv4 routes 48
IPv6 routes 48
2.5G Ethernet (copper) ports quantity 24
Compliance certificates CE,Federal Communications Commission (FCC),RoHS
Power over Ethernet 4PPoE (PoE++) ports quantity 8

Specific References

EAN13
4897098689738

Download

sg3428xpp-m2.pdf

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Data Sheet

Download (13.02MB)

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

8× 2.5 Gbps RJ45 PoE++, 16× 2.5 Gbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×330×44 mm
In Stock
£675.92
Tax included
Reference: sg3428xpp-m2
Quantity
