TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
  • TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
  • TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports type N
Broadcast storm control Y
Cables included AC
Certification CE, FCC, RoHS
Console port RJ-45/micro-USB
Depth 220 mm
Flow control support Y
Forwarding rate 238.08 Mpps
Head-of-line (HOL) blocking Y
Heat dissipation 111.71 BTU/h
Height 44 mm
IGMP snooping Y
IP routing Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address filtering Y
MAC address table 32000 entries
Management protocols SNMPv1/v2c/v3, SNTP
Manual Y
MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3x
Number of queues 8
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 45 °C
Package type box
Packet buffer memory 24 MB
Port mirroring Y
Power consumption (max) 32.74 W
Power over Ethernet (PoE) No
Power source AC
Power supply included Y
Quality of Service (QoS) support Y
Quick start guide Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Security algorithms HTTPS,SSH,SSH-2,SSL/TLS
Spanning tree protocol Y
SSH/SSL support Y
Static port security Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2+/L3
Switch type Managed
Switching capacity 320 Gbit/s
System event log Y
VLAN support Y
Web-based management Y
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
Cloud-managed Y

Specific References

EAN13
6935364006433

Download

sx3016f.pdf

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch Data Sheet

Download (13.02MB)

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch

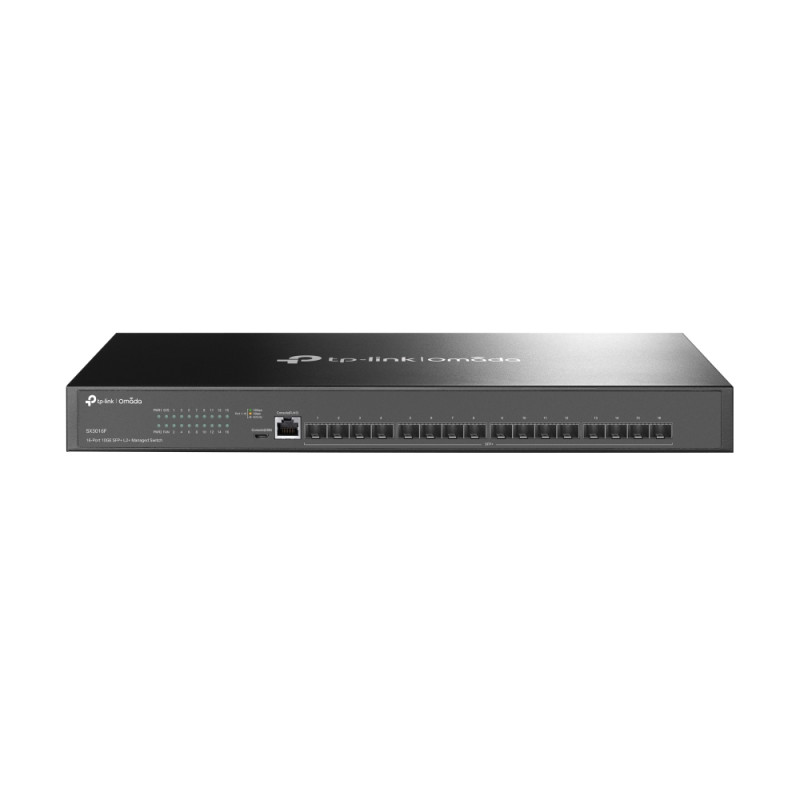

16× 10G SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 320 Gbps, 32 K MAC, 9 KB Jumbo, 440×220×44 mm
Out of Stock
£514.28
Tax included
Reference: sx3016f
Quantity
