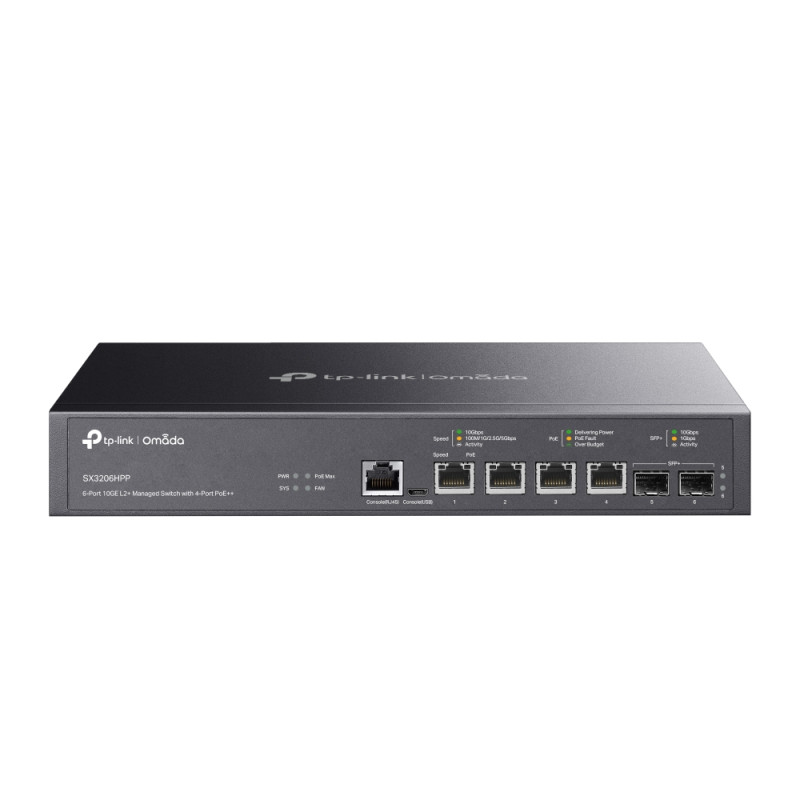

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Broadcast storm control Y
Cables included AC
Certification CE, FCC, RoHS
Console port RJ-45/micro-USB
Depth 180 mm
Flow control support Y
Forwarding rate 89.28 Mpps
Head-of-line (HOL) blocking Y
Heat dissipation 835.67 BTU/h
Height 44 mm
IGMP snooping Y
IP routing Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 32000 entries
Management protocols SNMP v1/v2c/v3
MIB support Yes
Minimum system requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
Number of fans 2 fan(s)
Number of static routes 48
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Packet buffer memory 16 MB
Port mirroring Y
Power consumption (max) 244.9 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power source AC
Power supply included Y
Quality of Service (QoS) support Y
Quick start guide Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Routing entries 512
Security algorithms HTTPS,SSL/TLS
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2+
Switch type Managed
Switching capacity 120 Gbit/s
System event log Y
Total Power over Ethernet (PoE) budget 200 W
VLAN support Y
Web-based management Y
Width 294 mm
ARP inspection Y
Jumbo frames 9000
Cloud-managed Y

Specific References

EAN13
6935364006617

Download

sx3206hpp.pdf

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Data Sheet

Download (13.02MB)

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

4× 100/1000/2500/5000/10000 Mbps RJ45, 2× 10G SFP+ Slots, RJ45/Micro-USB, 120 Gbps, 32 K MAC, 9 KB Jumbo, 294×180×44 mm
Out of Stock
£587.75
Tax included
Reference: sx3206hpp
Quantity
