| 10G support | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Cables included | LAN (RJ-45) |
| DC input voltage | 53.5 V |
| Depth | 98 mm |
| Forwarding rate | 7.44 Mpps |
| Height | 25 mm |
| IGMP snooping | Y |
| Jumbo frames support | Y |
| MAC address table | 2000 entries |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Port mirroring | Y |
| Power consumption (max) | 137.01 W |
| Power over Ethernet (PoE) | Yes |
| Power source | DC/PoE |
| Power supply included | Y |
| Rack mounting | No |
| Rate limiting | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2 |
| Switching capacity | 10 Gbit/s |
| Total Power over Ethernet (PoE) budget | 120 W |
| Web-based management | Y |
| Width | 99.8 mm |
| Jumbo frames | 16 |
Specific References
- EAN13
- 4895252500271

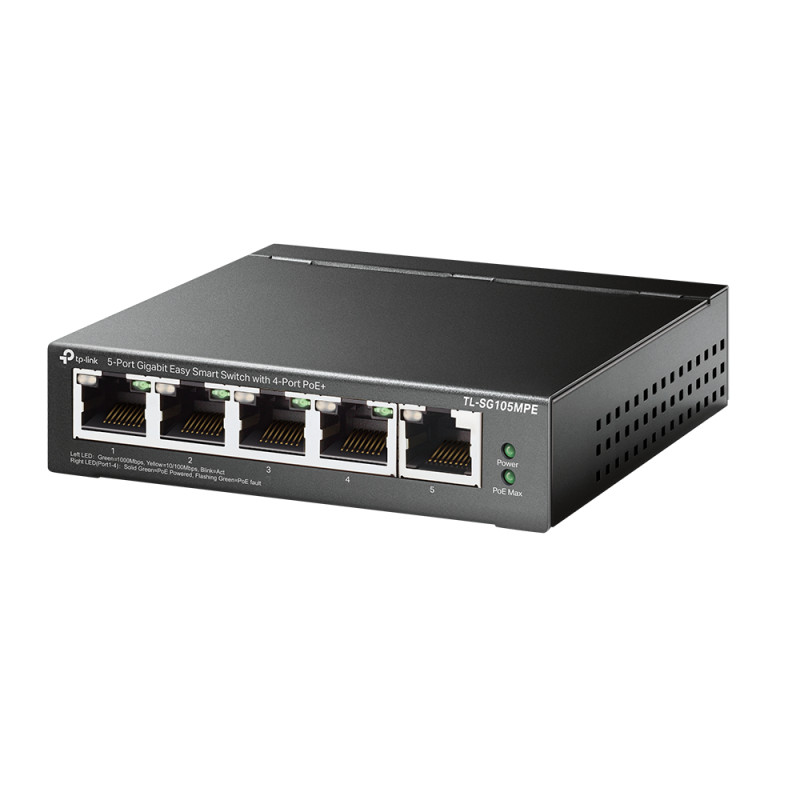

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
5 x 10/100/1000Mbps RJ45, 10 Gbps, 7.44 Mpps, 2K MAc, 16 KB Jumbo, 99.8 × 98 × 25 mm
£109.68
Tax included
5 x 10/100/1000Mbps RJ45, 10 Gbps, 7.44 Mpps, 2K MAc, 16 KB Jumbo, 99.8 × 98 × 25 mm
