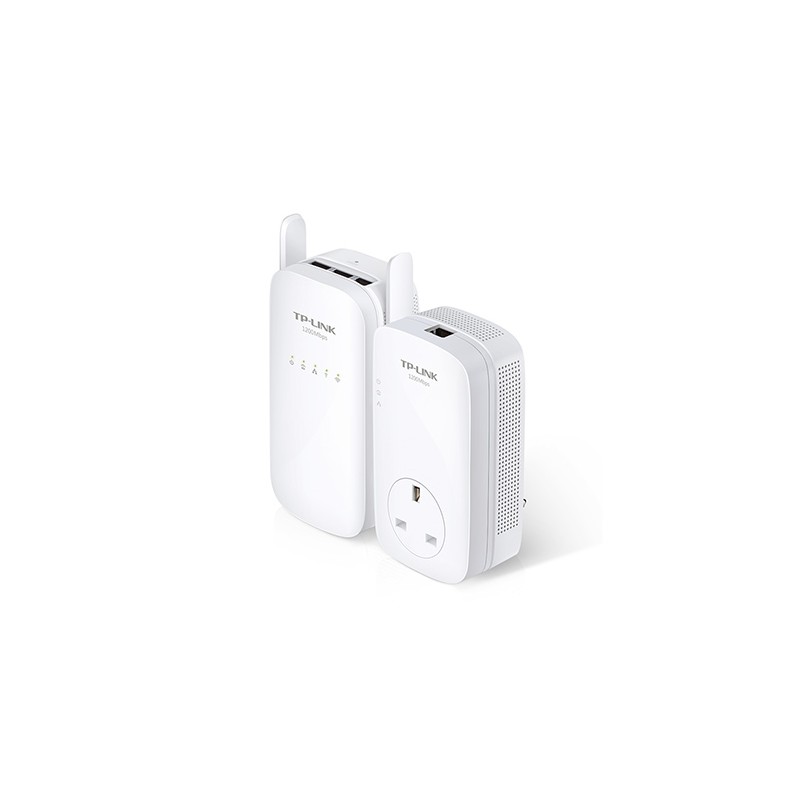

TP-LINK TL-WPA8630KIT
  • TP-LINK TL-WPA8630KIT
  • TP-LINK TL-WPA8630KIT
  • TP-LINK TL-WPA8630KIT
  • TP-LINK TL-WPA8630KIT
  • TP-LINK TL-WPA8630KIT
  • TP-LINK TL-WPA8630KIT
Instant Wi-Fi in Any Room



The TL-WPA8630 KIT expands your home’s Wi-Fi coverage into areas where the wireless signal from the main router is weak or nonexistent. The range extender kit can build a unified network using your home’s existing powerlines and allow you to enjoy Wi-Fi coverage in any area with a power outlet.



Fast Dual Band Wi-Fi Speeds – Up to 1200Mbps



The TL-WPA8630 utilizes 802.11ac Wi-Fi to deliver dual band connections with combined speeds of up to 1200Mbps, including 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. The combination of impressive speed and convenient powerline networking allows you to provide fast, reliable connections throughout your entire home. This is perfect for 4K streaming and online gaming, on multiple devices at the same time.



Excellent Powerline Speed - Up to 1200Mbps



Advanced HomePlug AV2 technology means the extender supports 2x2 MIMO with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.



More Gigabit Ethernet Ports, More Devices



Equipped with 3 gigabit Ethernet ports, TL-WPA8630 allows you to connect several bandwidth intensive devices such as game consoles, smart TVs or media receivers to the Internet at high speeds, just plug in network cables and enjoy fast and stable wired network anywhere at home.



Distracted by Blinking LEDs?



You can easily turn off the LED indicators by pressing the LED On/Off button or control them remotely using the tpPLC App on your mobile device or the tpPLC Utility on your computer.
AC input frequency50 Hz
AC input voltage230 V
Built-in power socketY
Cables includedLAN (RJ-45)
CertificationCE
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Encryption buttonY
Ethernet LANY
Ethernet LAN (RJ-45) ports3
Ethernet LAN data rates10,100,1000 Mbit/s
LED indicatorsY
Maximum data transfer rate1200 Mbit/s
Maximum operating distance300 m
ModulationOFDM
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth190 mm
Package height100 mm
Package width230 mm
Plug and PlayY
Power consumption (standby)5 W
PowerLine standardHomePlug AV2
Quality of Service (QoS) supportY
Quantity per pack2 pc(s)
Quick installation guideY
RoHS complianceY
Security algorithms128-bit AES
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Wi-FiY
Wi-Fi standards802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Windows operating systems supportedY

tl-wpa8630kit.pdf

TP-LINK TL-WPA8630KIT Data Sheet

Download (655.09k)

TP-LINK TL-WPA8630KIT

AV1200 Gigabit Powerline ac Wi-Fi Kit

TL-WPA8630 KIT

Out of Stock

£98.18
£81.82 Ex VAT.
